SARS-CoV-2 hijacks mobile kinase CDK2 to advertise viral RNA synthesis

CDKs assist SARS-CoV-2 RdRp-mediated gene expression

To establish mobile proteins that modulate the SARS-CoV-2 RNA synthesis, we first carried out immunoprecipitation coupled with mass spectrometry (MS) to find out mobile proteins that affiliate with SARS-CoV-2 RdRp. Briefly, Flag-tagged nsp7, Flag-tagged nsp8, and Flag-tagged nsp12 plasmids have been co-transfected into HEK293T cells, and the Flag-tagged proteins in cell lysates have been pulled down utilizing anti-Flag-M2 beads. The expression of nsp7, nsp8, and nsp12 in co-transfected cells was detected by western blot (Fig. 1a). The immunoprecipitate samples have been loaded for SDS-PAGE, adopted by Coomassie blue staining. Along with viral nsp7, nsp8, and nsp12, seen protein bands appeared at ~35 KD place within the immunoprecipitated samples (Fig. 1b), which have been extracted for liquid chromatography-mass spectrometry (LC-MS) evaluation. Eighty-four host proteins of molecular weights between 30 KD and 40 KD have been recognized (supplementary Desk S1).

Notably, two cyclin-dependent kinases (CDKs), CDK1 (Cyclin-dependent kinase 1) and CDK2, have been among the many high 20 hits (Fig. 1c). CDKs have been confirmed to modulate replication of RNA viruses by means of regulating cell cycle development, overcoming mobile restriction elements, and associating with viral RNA polymerase.^19,20,23 We thus speculated that SARS-CoV-2 could hijack mobile CDKs to advertise viral RNA replication.

In settlement with our speculation, a latest multi-omics research revealed that many kinases of the CDK household mediated sign transduction throughout SARS an infection by interacting with one another and served as useful hubs.²⁴ Extra importantly, a number of particular CDK inhibitors are efficient in treating most cancers.²⁵ These CDK inhibitors may very well be repurposed as efficient therapeutics to deal with SARS-CoV-2 infections.²⁵ Due to this fact, we chosen CDK for additional investigation on this research. To check this, we first measured the impact of CDKs knockdown on SARS-CoV-2 RNA synthesis utilizing a CoV-RdRp-Gluc reporter assay system as described beforehand.²⁶ On this assay, the luciferase gene comprises the 5’ and three’ untranslated areas (UTRs) of SARS-CoV-2 and its expression is pushed by a CMV promoter. When Gluc mRNA is expressed, the viral UTRs permits this mRNA to be acknowledged and amplified by viral RdRp, leading to a considerable enhance of Gluc expression, which experiences the exercise of SARS-CoV-2 RdRp. Upon knockdown of CDK1 or CDK2 with siRNA as proven by western blot evaluation, ranges of luciferase exercise considerably diminished (Fig. 1d), whereas no vital change in luciferase exercise was noticed in management cells that didn’t categorical viral RdRp (Fig. 1e). These information counsel a constructive position of CDK2 and CDK1 within the operate of SARS-CoV-2 RdRp. We subsequent overexpressed both CDK2 or CDK1, and noticed 1.5 fold enhance in luciferase exercise in cells expressing viral RdRp (Fig. 1f, Supplementary Fig. 1c), and a major lower of luciferase in management cells (Fig. 1g, Supplementary Fig. 1d). As well as, we examined whether or not different candidate genes resembling ETFA, OTUB1, and CDK5 (one other member of the CDK household) additionally participated in SARS-CoV-2 RdRp-mediated RNA synthesis. The outcome confirmed that silencing both of those genes with siRNA had no vital impact upon the luciferase exercise (Supplementary Fig. 1a, b), supporting the precise position of CDK1 and CDK2 in stimulating SARS-CoV-2 RdRp-mediated RNA synthesis.

CDK2 Interacts with SARS-CoV-2 nsp12

We subsequent carried out co-immunoprecipitation and Western blot to validate and additional study the interplay between CDK1 and CDK2 with the RdRp complicated by transfecting cells to precise both nsp7, nsp8 or nsp12 collectively or individually. The outcomes confirmed particular affiliation of CDK2 with the RdRp complicated, additionally with nsp12 itself, and CDK2 affiliation was a lot weaker for nsp8 and never detectable for nsp7 (Fig. 2a). In contrast with CDK2, little or no CDK1 was detected within the immunoprecipitated supplies, and no CDK5 was detected (Fig. 2a). To additional study the precise interplay of CDK2 with nsp12, we carried out the proximity ligation assay (PLA) which shows protein-protein interactions in situ with particular person fluorescent dots. As proven in Fig. 2b, essentially the most purple fluorescent dots have been noticed in nsp12-expressing cells, much less in cells expressing nsp8, and only a few in nsp7-expressing cells, that are according to the Co-IP information (Fig. 2a). The variety of PLA purple fluorescent dots have been counted and the PLA outcomes revealed a 28 and a pair of.7-fold enhance within the affiliation of CDK2 with nsp12 over nsp7 and nsp8, respectively (Fig. 2c). Fewer interplay foci have been noticed with RdRp in contrast with nsp12 alone (Fig. 2c), which can have resulted from comparatively decrease expression degree of nsp12 in cells co-transfected with nsp7, nsp8 and nsp12 than in cells solely expressing nsp12 (Fig. 2a). Collectively, these information exhibit the interplay between CDK2 and nsp12, which permits CDK2 to advertise RdRp exercise proven in Fig. 1.

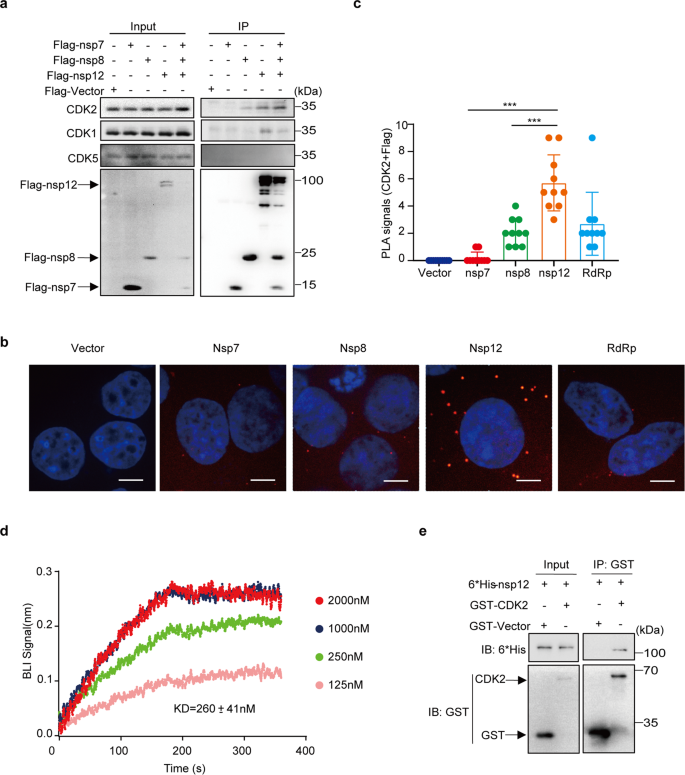

CDK2 interacts with nsp12. a Endogenous CDK2 interacts with Flag-nsp7, Flag-nsp8, and Flag-nsp12 in HEK293T cells. Anti-Flag M2 affinity gel was used for Co-Immunoprecipitation and the immunoprecipitates was analyzed by immunoblotting. b In situ proximity ligation assay (PLA) and confocal imaging to point out the interplay of endogenous CDK2 with Flag-nsp7, Flag-nsp8, Flag-nsp12 (purple) in HEK293T cells. Nuclei have been counterstained with DAPI (blue). Scale bars, 5 μm. c The variety of PLA purple fluorescent dots have been counted in randomly chosen cells. n = 10 cells per group. Information are introduced as imply ± SD. Two-tailed unpaired Scholar’s t-test was utilized between group nsp12 and group nsp8. Two-sided Mann–Whitney check was carried out between group nsp12 and group nsp7, ***P < 0.001. d Octet assay to detect the binding of CDK2 to the nsp12, and the binding affinity fixed was proven. Purified CDK2 protein was diluted to totally different concentrations (125, 250, 1000, and 2000 nM), after which nsp12 proteins (50 μg/mL) was biotinylated and captured on streptavidin (SA) biosensors. The affiliation and dissociation curves of CDK2 proteins are proven. e 6*His-tagged nsp12 was pulled down by GST-tagged CDK2 in vitro, then nsp12 and CDK2 proteins have been analyzed with indicated antibodies 6*His or GST

To check if CDK2 binds to nsp12 immediately, we subsequently measured the binding affinity between CDK2 and nsp12 by biolayer interferometry assay (BLI assay), which is extensively used for the evaluation and characterization of protein interactions. CDK2 exhibited a binding affinity to nsp12 in a concentration-dependent method, with an equilibrium dissociation fixed (KD) of 260 ± 41 nM (Fig. second). In keeping with the BLI outcome, CDK2 was confirmed to immediately bind to nsp12 in an in vitro GST pull-down assay (Fig. 2e). Taken collectively, these outcomes counsel a direct binding of nsp12 to CDK2.

CDK2 enhances the RNA synthesis by SARS-CoV-2 RdRp

We subsequent assessed the impact of CDK2 knockdown on the degrees of plus-strand and minus-strand RNA within the CoV-RdRp-Gluc reporter assay by performing RT-qPCR. Outcomes present that knockdown of CDK2 by both of three siRNAs diminished the degrees of each the minus- and plus-strand Gluc-RNA by 40–75%, with out measurable impact on the expression of both nsp7, nsp8, or nsp12 (Fig. 3a). Within the meantime, CDK2 knockdown didn’t have an effect on the expression of plus-strand Gluc-RNA within the management cells that didn’t categorical viral RdRp (Fig. 3b). The identical findings have been obtained from HeLa cells (Supplementary Fig. 2a, b). As well as, we discovered that the extent of minus-strand RNA within the CoV-RdRp-Gluc system elevated considerably accompanied with rising degree of CDK2 (Fig. 3c). These outcomes assist a task of CDK2 in helping SARS-CoV-2 RdRp-mediated RNA expression (Fig. 1).

CDK2 knockdown particularly impairs the exercise of RdRp. a, b HEK293T cells expressing CoV-Gluc, nsp12, nsp7, nsp8 plasmid DNA on the ratio of 1:10:30:30 (a) or management vector and CoV-Gluc (b) have been transfected with three siRNA particular sequence for CDK2. After 48 h, minus-strand or plus-strand Gluc-RNA was detected by qRT-PCR and protein expression was detected by Western blot evaluation. c CoV-Gluc, nsp12, nsp7, nsp8 plasmid DNA have been co-transfected in HEK293T cells on the ratio described above, after which a sequence of CDK2/CyclinA focus plasmids have been transfected into six-well plates. After 48 h, minus-strand Gluc-RNA was detected by qRT-PCR and protein expression was detected by western blot evaluation. Information are introduced as imply ± SD, *P < 0.05, **P < 0.01, ***P < 0.001 and ns not vital (two-tailed unpaired Scholar’s t-test)

Nsp12 is phosphorylated by CDK2 for environment friendly RNA synthesis

Given the kinase exercise of CDK2, the affiliation of CDK2 with nsp12 could result in phosphorylation of nsp12 or different elements of viral RdRp complicated, thus affecting the exercise of RdRp. To check this, we used an energetic CyclinA-CDK2 complicated method²⁷ through which the substrate of CDK2 is phosphorylated by the energetic CyclinA-CDK2 complicated and the response is inhibited by lambda protein phosphatase (λ-PPase). Plasmids expressing CDK2, CyclinA, both of nsp7, and nsp8, and nsp12 have been co-transfected into HEK293T cells, adopted by treating the cell lysate with λ-PPase. The outcome revealed a band of nsp12, which was misplaced upon the therapy with λ-PPase (Fig. 4a), whereas no band was noticed from the cell lysate expressing both nsp7 or nsp8 (Supplementary Fig. 3a, b), suggesting solely nsp12 acts as a substrate for CDK2.

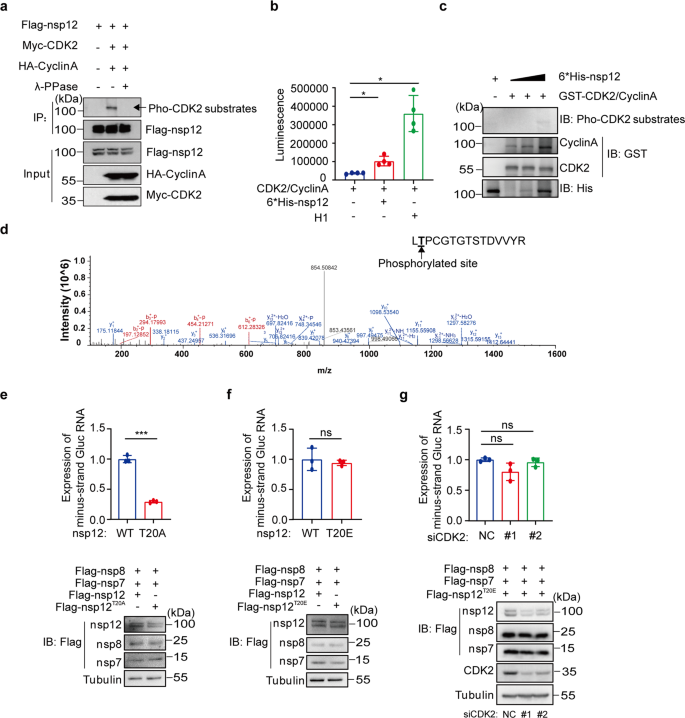

Phosphorylation of nsp12 by CDK2 enhances the RdRp exercise. a Flag-nsp12, Myc-CDK2, and HA-CyclinA have been co-transfected in HEK293T cells for 48 h. Flag-tagged nsp12 protein was immunoprecipitated in response to the earlier experimental technique after which handled with/with out λ-PPase, adopted by immunoblotting with antibodies in opposition to Pho-CDK2 substrates, Flag, HA, and Myc. b CDK2/CyclinA Kinase Enzyme Methods with the ADP-Glo^TM Assay. Purified nsp12 or Histone H1 incubated in a kinase response combination containing 50 μM ATP and 6.4 ng energetic CDK2/CyclinA. The experiments have been carried out in quadruplicate. Information are proven as imply ± SD, two-sided Mann–Whitney check, *p < 0.05. c In vitro CDK2/CyclinA kinase assay. Purified CDK2/CyclinA was incubated with recombinant proteins nsp12 in vitro phosphorylation system. The response combination was collected and examined utilizing immunoblotting. d Phosphorylation web site in nsp12 was recognized by mass spectrometry (MS). e, f CoV-Gluc, Flag-nsp7, Flag-nsp8, Flag-nsp12, or T20 mutant nsp12 have been co-transfected in HEK293T cells for 48 h. The minus-strand Gluc-RNA was quantified by RT-qPCR. Cell lysates have been analyzed by immunoblot with the indicated antibodies. g HEK293T cells have been transfected with Flag-nsp7, Flag-nsp8, Flag-nsp12 mutant T20E, Gluc-RNA plasmids and particular person siRNAs for 48 h. The minus-strand Gluc-RNA was quantified by RT-qPCR and protein expression was detected by Western blot evaluation. The experiment was carried out in triplicate. Information are proven as imply ± SD, two-tailed unpaired Scholar’s t-test in e–g, ***P < 0.001, ns not vital

To additional confirm nsp12 might be phosphorylated by CDK2, we first in vitro assessed the extent of nsp12 phosphorylation within the presence of CDK2 in complicated with CyclinA2, decided by ADP-Glo^TM Kinase Assay package. The assay measures the luminescent sign of ADP produced from a kinase response, which positively correlates with kinase exercise. The outcomes confirmed that the addition of purified nsp12 to a kinase response combination resulted in a robust luminescence sign (Fig. 4b), suggesting a kinase response occurred. As well as, one other in vitro kinase assay was carried out utilizing purified CDK2, Cycliln A, and nsp12 in kinase response buffer, leading to a protein band reacted with antibodies particular for Pho-CDK2 (Fig. 4c). Taken collectively, our outcomes strongly counsel that nsp12 is a substrate of CDK2.

To validate this outcome, we decided the phosphorylation web site of nsp12 by means of liquid chromatography-mass spectrometry evaluation of immunoprecipitated nsp12. The information revealed a CDK household phosphorylation web site at T20 in nsp12 (Fig. 4d), no such phosphorylation web site was recognized for nsp7 and nsp8 (information not proven). Collectively, our outcomes strongly counsel that nsp12 is phosphorylated at amino acid T20 by CDK2.

To disclose the useful relevance of nsp12 phosphorylation at T20, we constructed two nsp12 mutants, the phosphor-mimetic T20E and the non-phosphorylated T20A, and examined their skill to assist viral RNA synthesis within the CoV-RdRp-Gluc reporter assay. The outcome confirmed that with an analogous expression degree of the wild-type or the mutated nsp12, the T20A mutation diminished the extent of the minus-strand RNA by greater than 60% in contrast with that of the wild-type nsp12 (Fig. 4e), and the phosphor-mimetic nsp12 mutant T20E was as environment friendly because the wild-type nsp12 in RNA expression (Fig. 4f). This implies the significance of the nsp12 phosphorylation at T20 in supporting the environment friendly viral RNA synthesis. Importantly, we noticed that the minus-strand RNA synthesis by the phosphor-mimetic T20E or T20A was not affected by CDK2 knockdown (Fig. 4g, Supplementary Fig. 3c), supporting the mechanism of CDK2 stimulating RdRp operate by means of phosphorylating T20 in nsp12. Taken collectively, these information counsel that nsp12 is phosphorylated by CDK2 and the phosphorylation of nsp12 by CDK2 enhances the RdRp exercise.

CDK2 promotes the formation of the RdRp complicated

Subsequent, we investigated how CDK2-mediated phosphorylation of nsp12 at T20 impacts the viral RNA synthesis. First, we knocked down CDK2 and examined the impact on nsp12 expression. Not one of the three totally different pairs of CDK2 siRNA altered the extent of nsp12, suggesting that CDK2-induced phosphorylation of nsp12 at T20 doesn’t have an effect on nsp12 expression (Supplementary Fig. 4). We additional assessed the attainable impact of CDK2 silencing on the formation of the RdRp complicated in a co-immunoprecipitation assay. The RdRp complicated in cell lysates was pulled down utilizing the anti-Flag-M2 beads concentrating on nsp7/8-Flag, adopted by western blotting to detect HA-nsp12 utilizing the HA antibody. The outcomes confirmed a 1.7-fold lower within the quantity of HA-nsp12 that was co-precipitated with nsp7/8-Flag when CDK2 was knocked down (Fig. 5a). In assist of the Co-IP information, the outcomes of PLA assay revealed a marked discount within the interplay between nsp12 and both nsp7 or nsp8 with CDK2 knockdown (Fig. 5b). Collectively, these information counsel an essential position of CDK2 within the formation of the RdRp complicated in cells.

CDK2 stabilizes the RdRP complicated. a HEK293T cells have been transfected with management siRNA or CDK2 siRNA after which transfected with vectors expressing Flag-tagged nsp7/8 and HA-tagged nsp12. Cell lysates have been immunoprecipitated in response to the earlier experimental technique. The experiments have been carried out in triplicate and western blots have been quantified utilizing ImageJ. Information are proven as imply ± SD, *P < 0.05 (two-tailed unpaired Scholar’s t-test). b Situ proximity ligation assay (PLA) and confocal imaging to point out the interplay of HA-nsp12 with Flag-nsp7, Flag-nsp8 (purple dots) in HEK293T cells which have been transfected with management siRNA or CDK2 siRNA. Nuclei have been stained with DAPI (blue). Scale bars, 5 μm. Variety of PLA purple fluorescent dots in randomly chosen cells, n = 10 cells per group. Information are proven as imply ± SD, two-sided Mann–Whitney check, ***P < 0.001. c Flag-tagged nsp7/8 and HA-tagged nsp12 or numerous nsp12 mutants have been co-transfected in HEK293T cells for 48 h. Anti-Flag M2 affinity gel was used for Co-Immunoprecipitation and Western blot evaluation was carried out with indicated antibodies. d Situ proximity ligation assay and confocal imaging to point out the interplay of HA-tagged nsp12 or nsp12 mutants with Flag-nsp7, Flag-nsp8 (purple dots) in HEK293T cells. Consultant information are proven. Nuclei have been stained with DAPI (blue). Scale bars, 5 μm. e Variety of PLA purple fluorescent dots in randomly chosen cells, n = 10 cells per group. Information are proven as imply ± SD, two-tailed unpaired Scholar’s t-test between group T20E and group WT (large kind), two-sided Mann–Whitney check between group T20A and group WT, **P < 0.01, ***P < 0.001. f HEK293T cells have been transfected with management siRNA or CDK2 siRNA, after which transfected with vectors expressing Flag-tagged nsp7/8 and HA-tagged nsp12 T20E mutant plasmid DNA. Anti-Flag M2 affinity gel was used for Co-Immunoprecipitation and Western blot evaluation was carried out with antibodies in opposition to HA, Flag, CDK2, or tubulin

To find out whether or not CDK2 enhances the RdRp complicated formation by means of phosphorylation of T20 in nsp12, we examined the T20A and T20E nsp12 mutants within the Co-IP and PLA assays as described above. The outcomes confirmed that with an analogous expression degree of wild-type or mutated nsp12, the T20A mutation brought on a 33% lower within the quantity of nsp7/8/12 RdRp complicated in comparison with the wild-type, whereas the phosphor-mimetic T20E mutation brought on a two-fold enhance within the precipitated nsp7/8/12 complicated (Fig. 5c). In assist of the Co-IP information, outcomes of PLA confirmed markedly decreased interplay of T20A nsp12 with nsp7/8 and elevated interplay of T20E nsp12 mutant with nsp7/8 (Fig. 5d, e). Additional, we famous that CDK2 knockdown didn’t have an effect on the quantity of T20E nsp12 within the nsp7/8 immunoprecipitates (Fig. 5f), according to the independence of this nsp12 mutant on CDK2 in catalyzing RNA synthesis (Fig. 4f), suggesting that the position of CDK2 within the formation and the operate of the RdRp complicated is to phosphorylate the T20 amino acid of nsp12.

CDK2 inhibitor SNS-032 blocks SARS-CoV-2 replication

The enhancing impact of CDK2 on viral RNA synthesis prompts us to check whether or not CDK2 inhibitors can inhibit SARS-CoV-2 an infection. To this finish, we assessed a complete of 17 CDKs inhibitors within the CoV-Gluc reporter assay. The drug goal description targets for every inhibitor might be present in Supplementary Desk S3. The primary 13 inhibitors both are particular for CDK2 or possess a broad exercise in opposition to a number of CDKs together with CDK2, and the remaining three are particular for CDK1, CDK7, CDK9, and CIK. In contrast with the DMSO management group, all CDK2 inhibitors potently inhibited the Gluc exercise, with 10 of 13 inflicting greater than 60% inhibition, whereas neither of different CDKs inhibitors confirmed any inhibitory impact (Fig. 6a), suggesting the specificity of CDK2 inhibitors in inhibiting SARS-CoV-2 RdRp exercise. In additional assist of this conclusion, the CDK2 inhibitor SNS-032 inhibited the exercise of SARS-CoV-2 RdRp with an EC₅₀ of 73 nM (Fig. 6b), versus the CDK1 inhibitor Ro-3306 exhibiting no vital impact on Gluc expression as much as 7 μM (Fig. 6b), which is greater than 600-fold increased than the reported IC₅₀ 110 nM in opposition to CDK1.²⁸ Lastly, we evaluated the antiviral exercise of SNS-032 in opposition to SARS-CoV-2 (MOI of 0.05) by infecting Vero cells and measuring viral an infection by quantifying viral genomic RNA with RT-qPCR. As proven in Fig. 6c, an infection of dwell SARS-CoV-2 on Vero cells was additionally strongly inhibited by SNS-032 therapy. SNS-032 markedly inhibited SARS-CoV-2 an infection in a dose-dependent method, with an EC₅₀ of 84 nM (Fig. 6d). Collectively, these outcomes establish CDK2 as a possible goal of anti-SARS-CoV-2 medication.

CDK2 inhibitor SNS-032 blocks SARS-CoV-2 replication. a CoV-Gluc, nsp12, nsp7, and nsp8 plasmids have been co-transfected on the ratio of 1:10:30:30 in HEK293T cells. Twelve hours post-transfection, totally different compounds of CDKs household inhibitors (10 μM) have been added to the cells. Gluc exercise was examined after 24 h. The checks have been carried out in three unbiased experiments, information are proven as imply ± SD. b CoV-Gluc, nsp12, nsp7, and nsp8 plasmid DNA have been co-transfected in HEK293T cells on the ratio described above. Serially diluted inhibitors SNS-032 and Ro-3306 have been added into HEK293T cells after 12 h. Gluc exercise was measured after 24 h of incubation. The experiments have been carried out in triplicate. c Vero cells have been handled with 1.22, 19.53, 312.5, 5000 nM SNS-032 after which contaminated by SARS-COV-2 at MOI = 0.05. Viral an infection was decided utilizing qPCR. Experiments have been carried out two occasions. Error bars point out imply ± SD. d EC₅₀ of SNS-032 was calculated. e, f Flag-tagged nsp7/8 and HA-tagged nsp12 (e) or HA-tagged nsp12 T20E mutant (f) plasmid DNA have been co-transfected in HEK293T cells. 12 h post-transfection, serially diluted inhibitors SNS-032 (e: 0, 0.039, 0.6 μM; f: 0, 0.039, 0.15, 0.6 μM) have been added into HEK293T cells. After 24 h incubation, anti-Flag M2 affinity gel was used for Co-Immunoprecipitation and western blot evaluation was carried out with antibodies in opposition to HA, Flag

To discover the mechanics of how SNS-032 inhibits SARS-CoV-2 replication, we assessed the impact of SNS-032 on the formation of the RdRp complicated in a Co-IP assay. The outcomes confirmed a major lower within the quantity of HA-nsp12 within the presence of SNS-032, suggesting an inhibitory impact of SNS-032 on the formation of RdRp complicated (Fig. 6e). In distinction, upon changing large kind nsp12 with phosphor-mimetic T20E mutant, the Co-IP assay confirmed no impact of SNS-032 on the formation of the complicated (Fig. 6f). Collectively, our outcomes counsel that SNS-032 targets the CDK2 and inhibits the formation of the RdRp complicated by blocking phosphorylating the T20 amino acid of nsp12.
